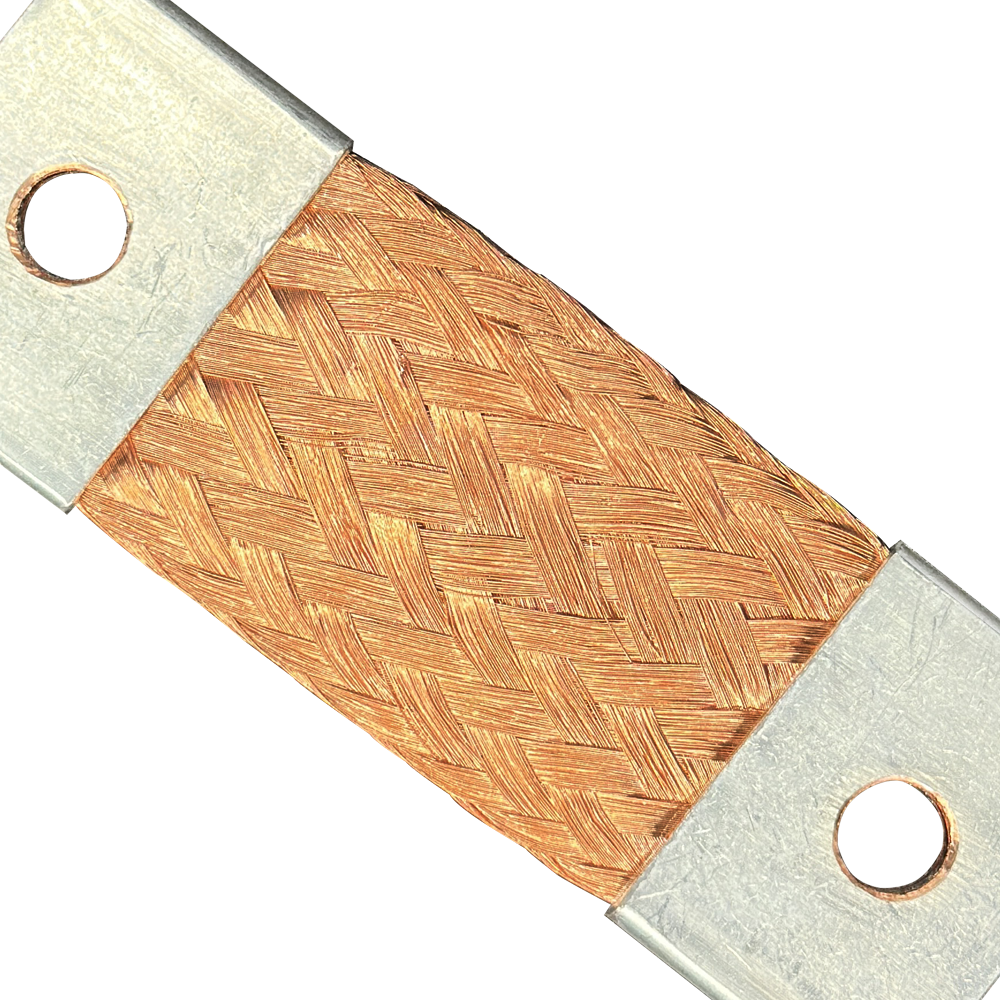

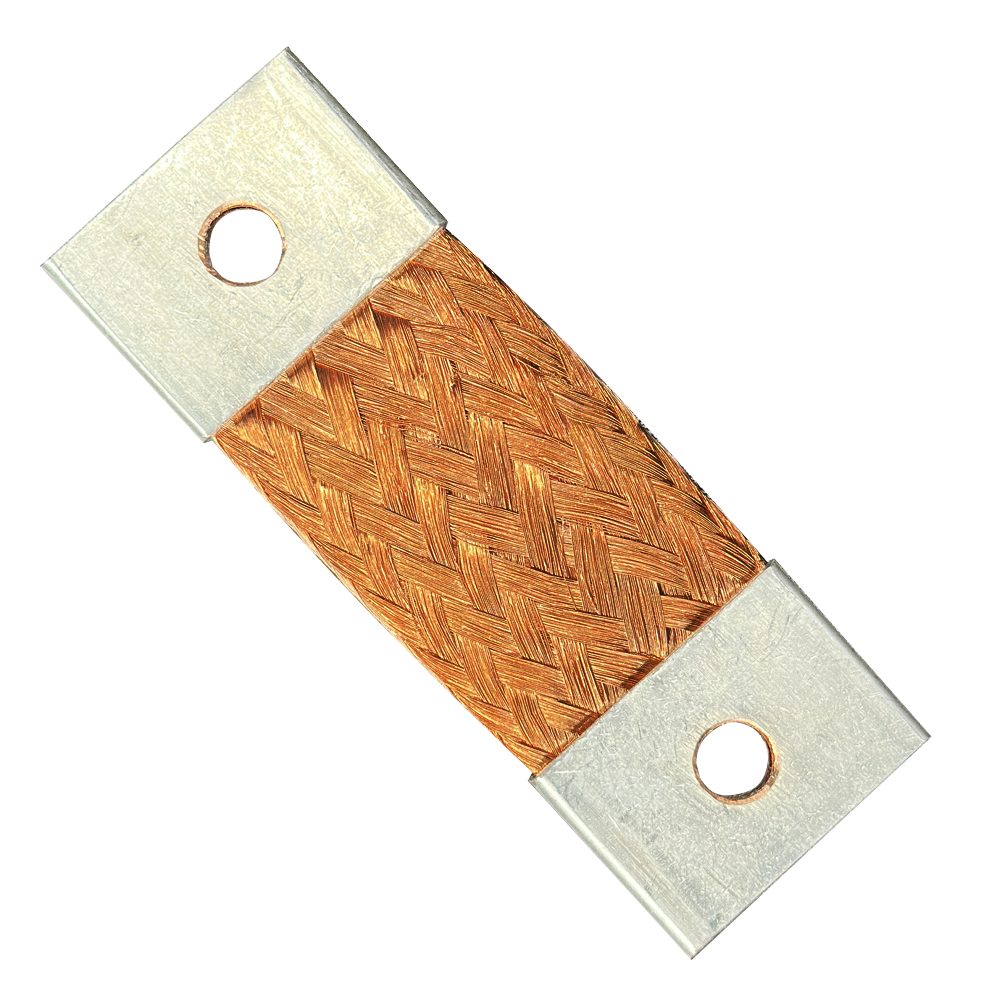

MB56 M8 Size Braided Busbar

Engineer high-current, vibration-resistant power connections for your custom energy storage projects. Specially designed for EVE MB56 628Ah prismatic battery cells featuring single M8 threaded studs, this heavy-duty flexible braided copper busbar delivers exceptional current density, structural tolerance, and thermal performance for demanding DIY solar and off-grid battery builds.

Precision Cell Compatibility & Key Dimensions

Engineered specifically for next-generation energy storage cells, this flexible braided jumper bridges the gap between massive capacity and mechanical reliability:

• Target Battery Cell: EVE MB56 (628Ah LiFePO4 Prismatic Cell).
• Terminal Standard: Tailored for single M8 threaded terminal studs.

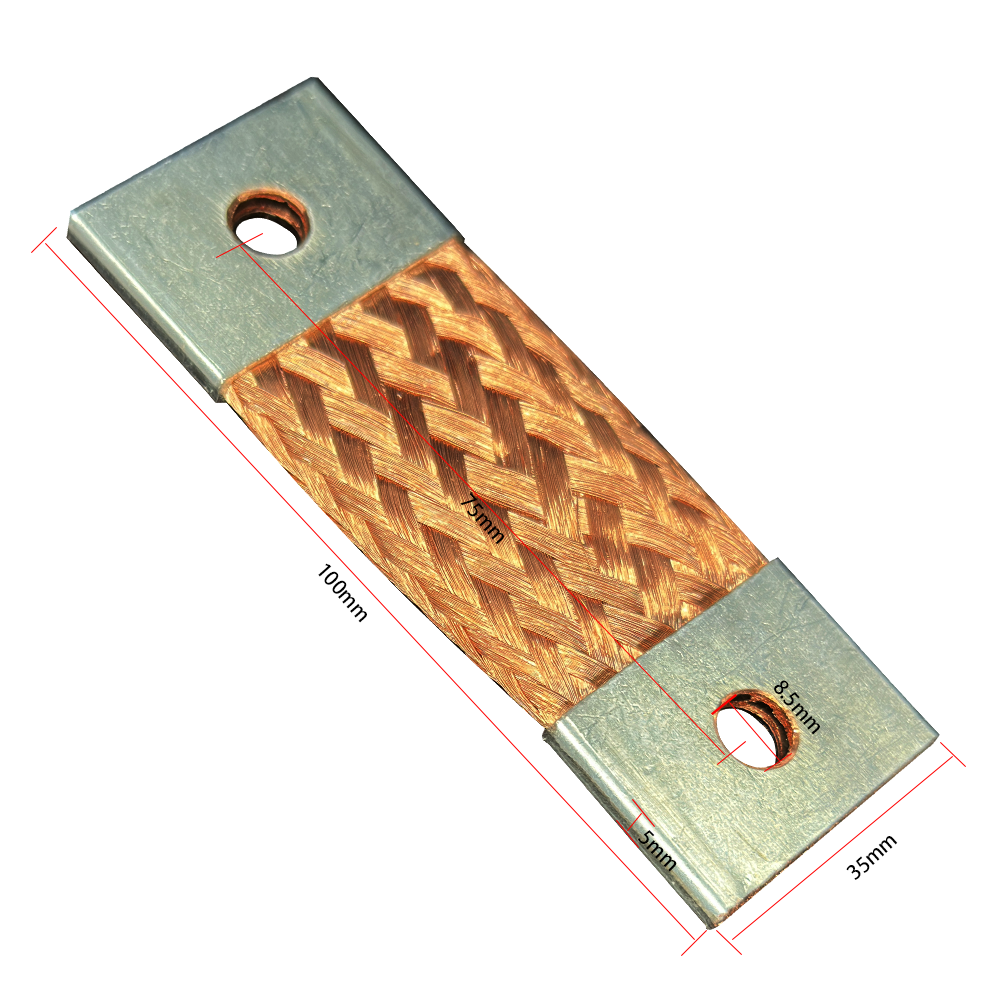

• Center-to-Center Distance (Pitch): Exactly 75 mm, matching standard MB56 terminal spacing.
• Inter-Cell Configuration: Ideal for series (S) or parallel (P) interconnects in 12V, 24V, and 48V DIY battery banks.

Advanced Features & Engineering Advantages

Designed to overcome the mechanical and thermal limitations of standard interconnects, this braided busbar incorporates essential performance features:

• 300A Continuous Current Carrying Capacity: Manufactured with ultra-high purity oxygen-free copper strands, optimized to sustain over 300A continuous discharge with minimal voltage drop and low temperature rise.
• Dynamic Shock & Vibration Absorption: The fine-wire braided core provides full multi-axis flexibility, dampening mechanical shock, thermal expansion/contraction stresses, and vehicle movement vibrations in mobile or marine environments.
• Maximum Contact Surface Area: Precision-stamped solid copper end-pallets form a flawless M8 mounting eyelet. This ultra-flat contact face ensures complete perimeter engagement with the M8 terminal stud and nut, drastically reducing contact resistance and thermal hotspots.

Technical Comparison: Braided vs. Laminated Flexible vs. Rigid Busbars

Choosing the correct interconnect architecture is critical for long-term safety, efficiency, and mechanical resilience. Below is a detailed performance breakdown:

How to Select the Right Busbar for Your Battery Pack

When selecting cell interconnects for your custom LiFePO4 build, evaluate these two essential electrical and environmental factors:

• Peak & Continuous Discharge Amperage: Ensure the busbar cross-sectional copper area matches or exceeds your inverter's maximum continuous current draw. For 300A continuous loads, braided busbars maintain lower operating temperatures and prevent thermal throttling.
• Operating Environment & Mechanical Stress: For mobile applications (RVs, vans, overland vehicles, boats) or high-capacity DIY packs susceptible to subtle cell swelling during charge cycles, flexible braided busbars isolate the delicate terminal studs from shear stress, preventing thread stripping or internal seal rupture.

Package Contents (Parts Listing)

Each interconnect kit includes high-grade, corrosion-resistant hardware ready for immediate installation:

• 1 x High-Flex Braided Copper Busbar (75mm Pitch, M8 Hole Size)
• 2 x Stainless Steel 304 Flange Nuts (M8 Thread) (Ensures uniform clamping pressure and corrosion prevention)
