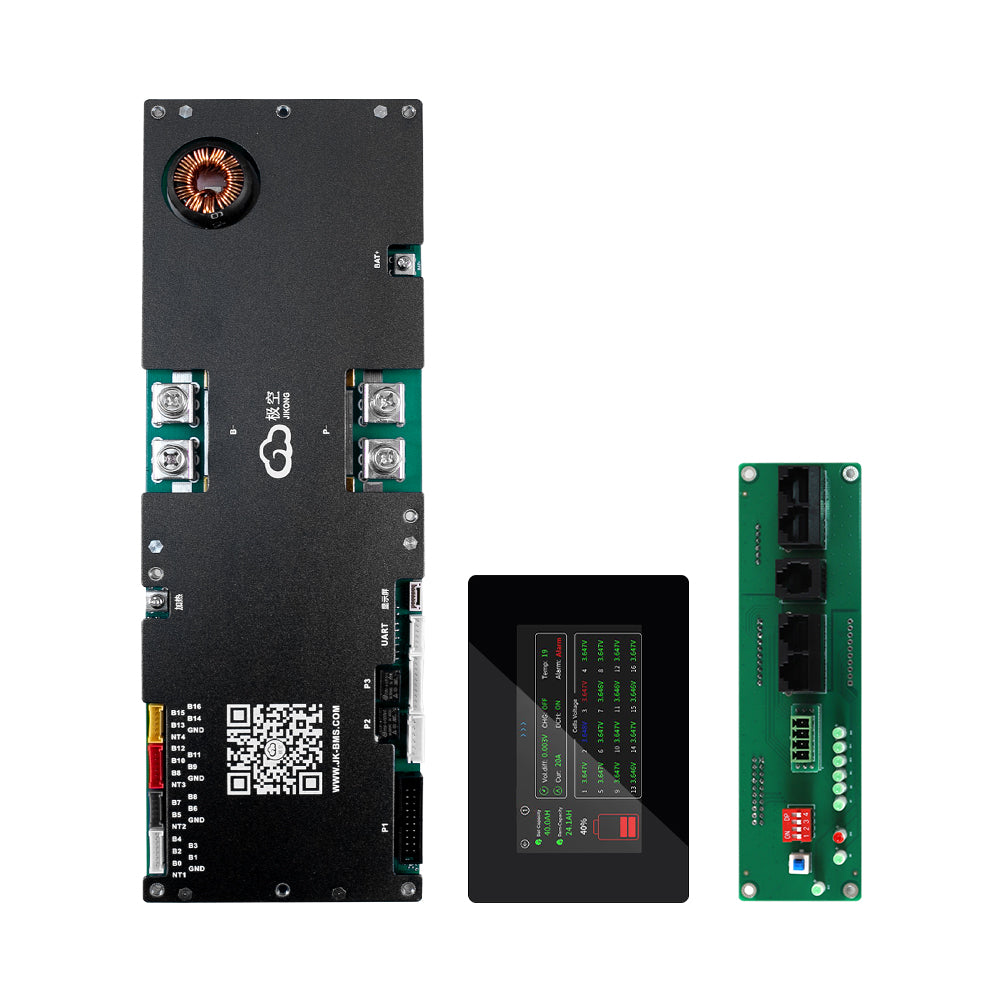

JK New V19 PB2A16S20P 16S 200A LiFePO4 Battery BMS|EP Energy
SKU:
EP-JKPB2A16S20P
Availability:
In stock
Product type:
BMS
- $168.00
$188.00- $168.00
- Unit price
- per
Subtotal:
$168.00
10 customers are viewing this product
Free Shipping
Express or ocean freight.
Express shipping time: 10-12 days.
Ocean freight to Europe: 35-45 days.
Ocean freight to the USA: 25-30 days.
Free Returns
We offer a 30-day return policy for items in new and unopened condition.
24/7 Online Service
Professional and prompt customer service.
Description
xThe JK PB2A16S20P is a high-performance Smart BMS designed for 8S-16S LiFePO4 battery configurations. Featuring a massive 200A continuous discharge capacity and an industry-leading 2A active balancing current, it delivers up to 10kW of reliable power for home energy storage while ensuring maximum cell longevity through intelligent voltage management.
JK PB2A16S20P BMS
⚡ Unmatched Power Output (Up to 10kW)
-
High Current Capability: Engineered for heavy-duty applications, supporting a 200A continuous discharge.
-
Scalable Performance: Easily powers a 5kW load in 8S (24V) setups or a full 10kW load in 16S (48V/51.2V) configurations, meeting the energy demands of most modern households.
⚖️ Advanced 2A Active Balancing
-
Cell Life Extension: Unlike standard passive balancers, the JK PB2A16S20P uses 2A active balancing to rapidly transfer energy between cells.
-
Precision Maintenance: Effectively eliminates voltage discrepancies, significantly preventing cell degradation and extending the overall lifespan of your battery pack.

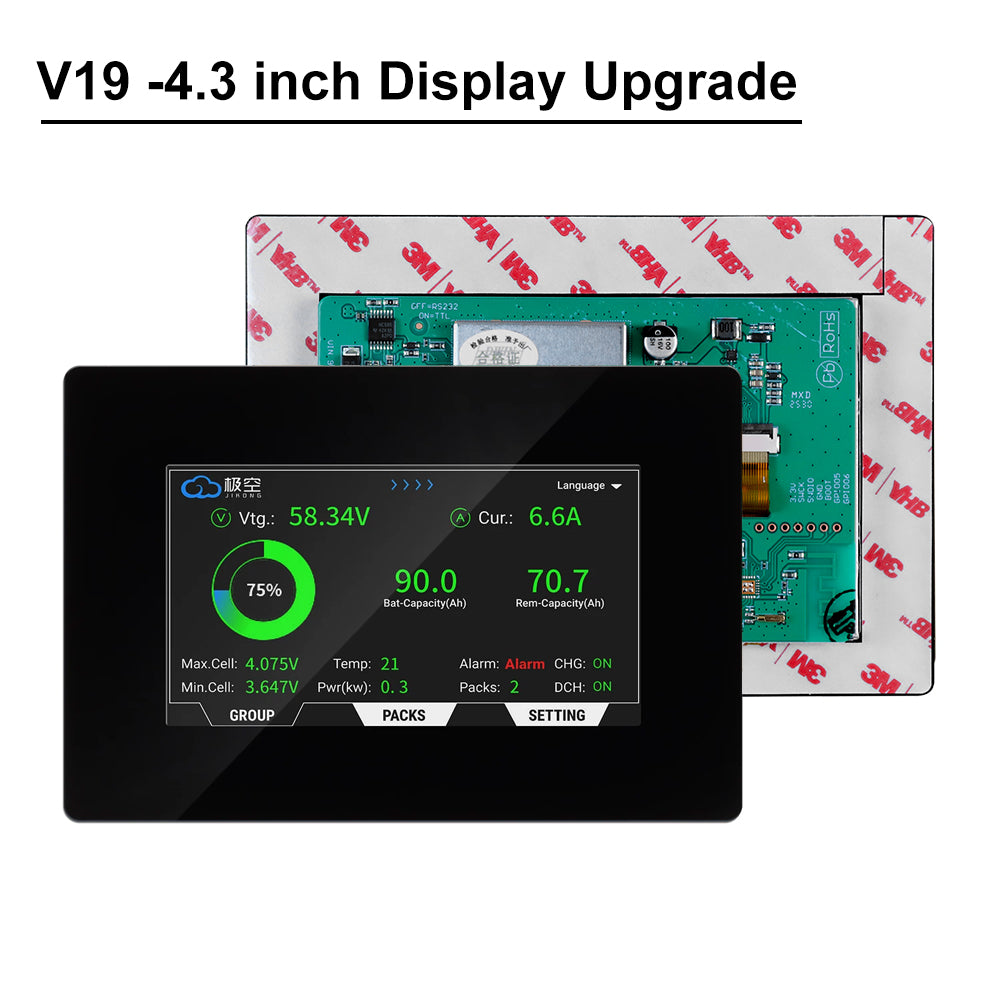

🖥️ Interactive 4.3-inch Touch Display
-
Real-Time Diagnostics: Monitor your system at a glance via the large 4.3-inch color touchscreen.
-
Deep Data Insights: Instantly view total pack voltage, individual cell capacity, internal resistance, and state of health (SOH) without needing external tools.
📱 Smart Bluetooth App Control
-
Wireless Monitoring: The built-in Bluetooth module allows for seamless connection to the JK BMS App.
-
On-the-Go Tuning: Modify battery parameters, set safety thresholds, and track performance logs directly from your smartphone.
🔌 Universal Inverter Compatibility
-
Seamless Integration: Pre-configured to communicate with the world’s leading inverter brands, including Growatt, Goodwe, Deye, SRNE, Sol-Ark, and EG4.
-
Plug-and-Play Setup: Simplifies the installation of off-grid and hybrid solar storage systems.
Some Technical Specifications
| Feature | Details |
| Model | JK-PB2A16S20P |
| Battery Chemistry | LiFePO4 / Li-ion (8S to 16S) |
| Continuous Discharge | 200A |
| Active Balance Current | Max 2.0A (Adjustable) |
| Max Power Output | 10.24kW (16S Configuration) |
| Display Type | 4.3" LCD Touch Interface |
| Communication | CAN / RS485 / Bluetooth |
| Mounting Style | Integrated / Internal |
Specification
xTechnical Specifications
Model: JK PB2A16S20P BMS| No. | Key Function | Configuration / Value |
|---|---|---|
| 01 | Active Balancing Current | 2A (Active Balancing) |
| 02 | Continuous Discharge Current | 200A |
| 03 | Continuous Charge Current | 200A |
| 04 | Maximum Instantaneous Current | 400A (Peak) |
| 05 | Communication Interface | App Support /RS485 /RS232 /CAN /BUS |
| 06 | Charge Overvoltage Protection | ✔ Yes |
| 07 | Discharge Undervoltage Protection | ✔ Yes |
| 08 | Charge Overcurrent Protection | ✔ Yes |
| 09 | Discharge Overcurrent Protection | ✔ Yes |
| 10 | Short Circuit Protection | ✔ Yes |
| 11 | NTC Temperature Sensors | 5 Total (1 Built-in, 4 External) |
| 12 | Working Temperature Range | -30°C ~ 70°C |
FAQ
xCan the JK PB2A16S20P handle 48V LiFePO4 systems?
Yes. The JK PB2A16S20P is fully compatible with 16S LiFePO4 configurations, providing a stable 48V/51.2V
output with a
continuous 200A discharge, ideal for 10kW home inverters.
Does it include the communication protocols for Deye inverters?
Absolutely. The JK BMS series comes with built-in protocols for Deye, Growatt, and other major brands,
allowing for full
CAN/RS485 data communication between the BMS and the inverter.
Can I use this BMS in the series?
No, the JK PB2A16S20P BMS only supports parallel connection, with a maximum of 16 battery banks that can be connected in
parallel.
