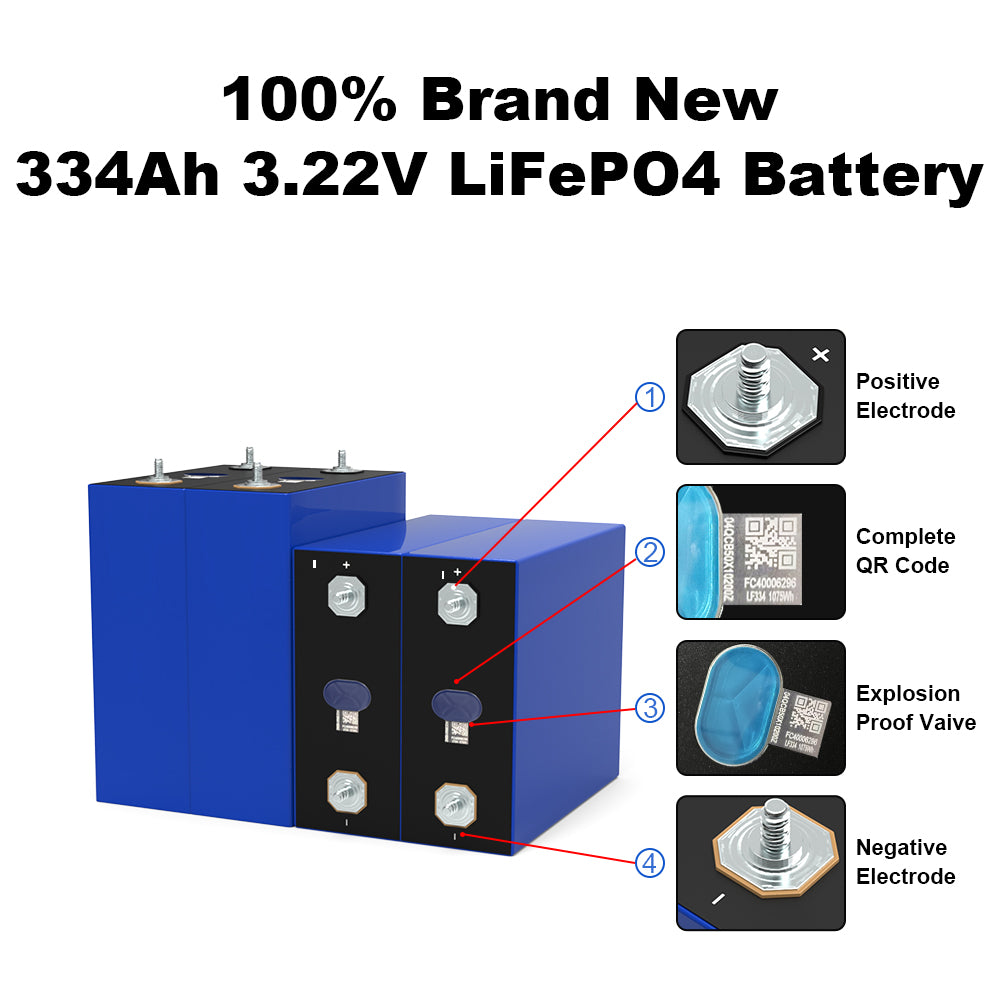

334Ah 3.22V LiFePO4 Cell apperance display

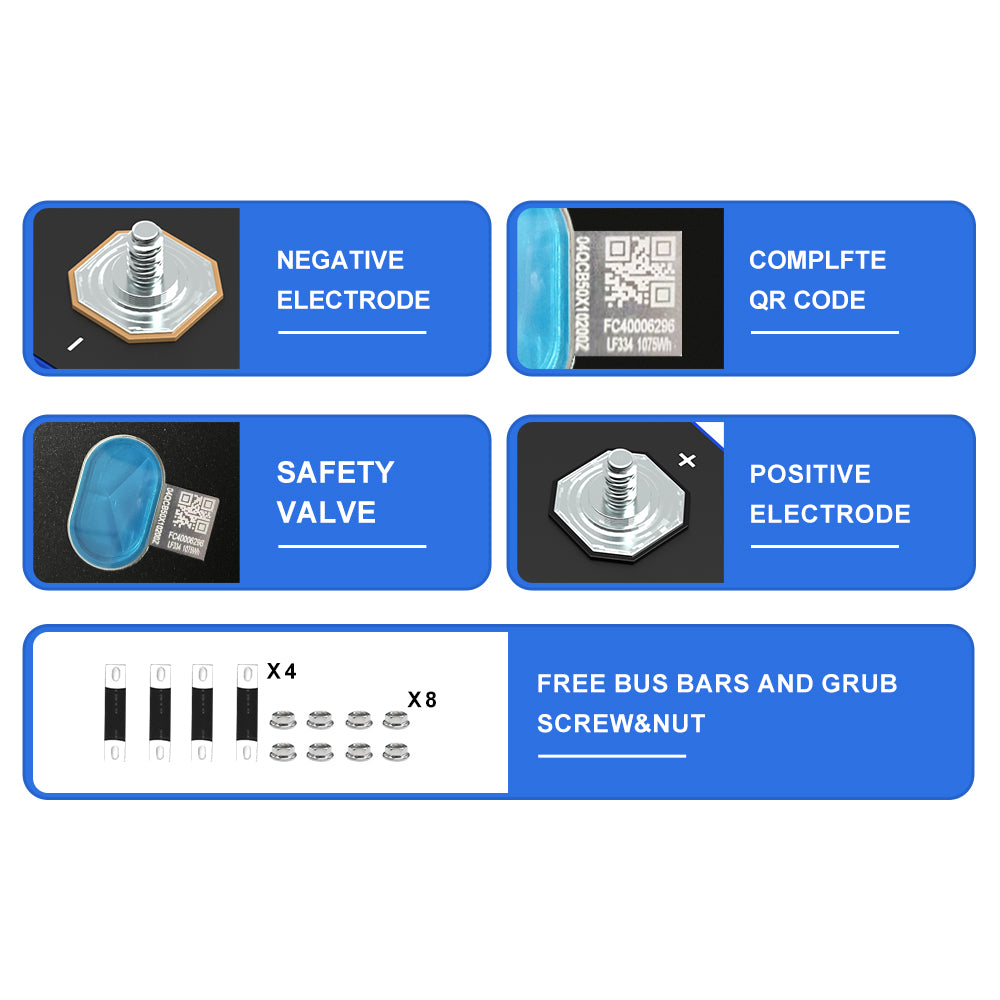

Technical diagram of a 334Ah cell components with labels on a white background
Person using a digital multimeter on battery cells with text about battery consistency and features.
prismatic cell package details
4 EVE 3.2V 334Ah prismatic cell with yellow epoxy plate and busbars
EVE 334Ah 3.2V cell with specifications and features on a blue background
334Ah LiFePO4 cell with dimensions, product parameters, and specifications on a white background
334Ah 3.22V LiFePO4 Cell apperance display
Technical diagram of a 334Ah cell components with labels on a white background
Person using a digital multimeter on battery cells with text about battery consistency and features.
prismatic cell package details
EP Energy

EVE Grade A 334Ah 3.2V LF334 LiFePO4 Cell|EP Energy

SKU: EP-LF334-4
Availability: In stock
Product type: LiFePO4 Cell
$352.00
$380.00
$352.00
Quantities: 4PCS
Quality: Grade A
Subtotal: $352.00
10 customers are viewing this product

Free Shipping

Express or ocean freight.

Express shipping time: 10-12 days.

Ocean freight to Europe: 35-45 days.

Ocean freight to the USA: 25-30 days.

Free Returns

We offer a 30-day return policy for items in new and unopened condition.

24/7 Online Service

Professional and prompt customer service.
4 EVE 3.2V 334Ah prismatic cell with yellow epoxy plate and busbars

EVE Grade A 334Ah 3.2V LF334 LiFePO4 Cell|EP Energy

$380.00 $352.00
4 EVE 3.2V 334Ah prismatic cell with yellow epoxy plate and busbars
EVE 334Ah 3.2V cell with specifications and features on a blue background
334Ah LiFePO4 cell with dimensions, product parameters, and specifications on a white background
334Ah 3.22V LiFePO4 Cell apperance display
Technical diagram of a 334Ah cell components with labels on a white background
Person using a digital multimeter on battery cells with text about battery consistency and features.
prismatic cell package details

EVE Grade A 334Ah 3.2V LF334 LiFePO4 Cell|EP Energy

$380.00 $352.00
Quantities: 4PCS
Quality: Grade A
Description
Description
x

Engineered for high-demand applications, the EVE LF334 334Ah 3.2V LiFePO4 Cell sets a new standard with a continuous 1C charge/discharge rate and a massive 4,000-cycle lifespan at 80% SOH.

EVE New Model LF334 | 334Ah 3.2V LiFePO4 Cell

Authentic Grade A Quality This brand-new EVE 3.2V 334Ah LiFePO4 prismatic cell features a pristine, scannable QR code for full traceability. Each cell comes equipped with aftermarket M6 studs for easy installation and includes an original factory inspection report to guarantee performance and safety.

1C Charge/Discharge & 3C Peak Discharge (30s)

Engineered for high-performance demands, the EVE LF334 supports a 334A continuous charge/discharge current.

  • Rapid Charging: Achieve 80% SOC in just 1 hour and a full charge in 1.5 hours.

  • Peak Power: The 3C peak discharge rate provides the instantaneous power needed for high-load applications and heavy-duty starts.

Extended Operating Temp: -10°C to 65°C

The LF334 is designed for resilience. Unlike standard cells, it supports charging at temperatures as low as -10°C without damaging the battery chemistry. This wider operating window offers superior flexibility and reliability in cold-weather environments.

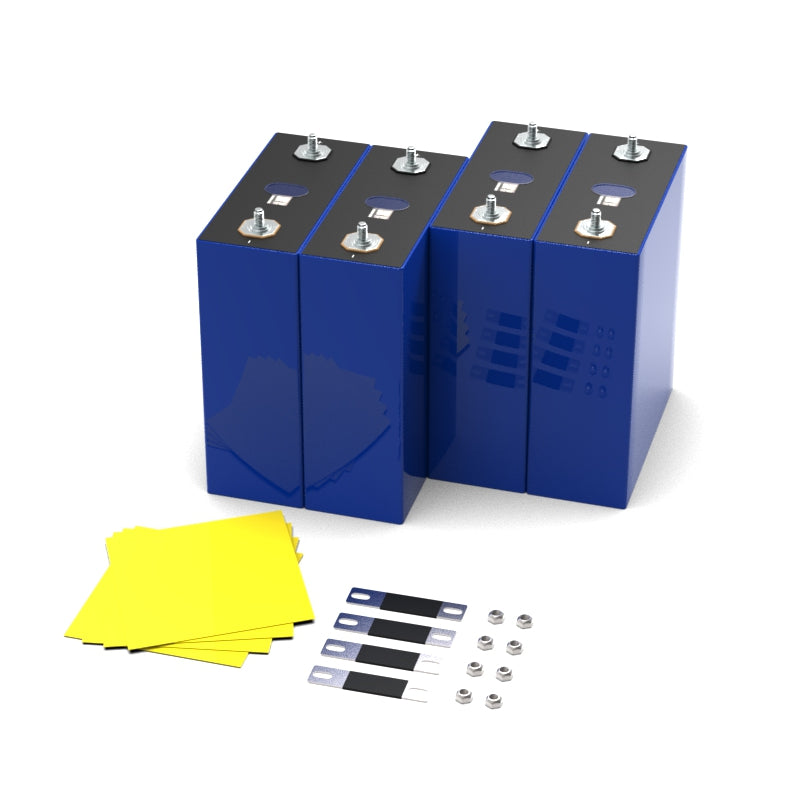

Complete DIY Assembly Kit

To simplify your build, each cell includes a free high-quality accessory set:

  • 1 x EVE LF334 Cell

  • 1 x Insulation Epoxy Plate

  • 1 x Pure Copper Busbar (High conductivity)

  • 2 x Flange Nuts

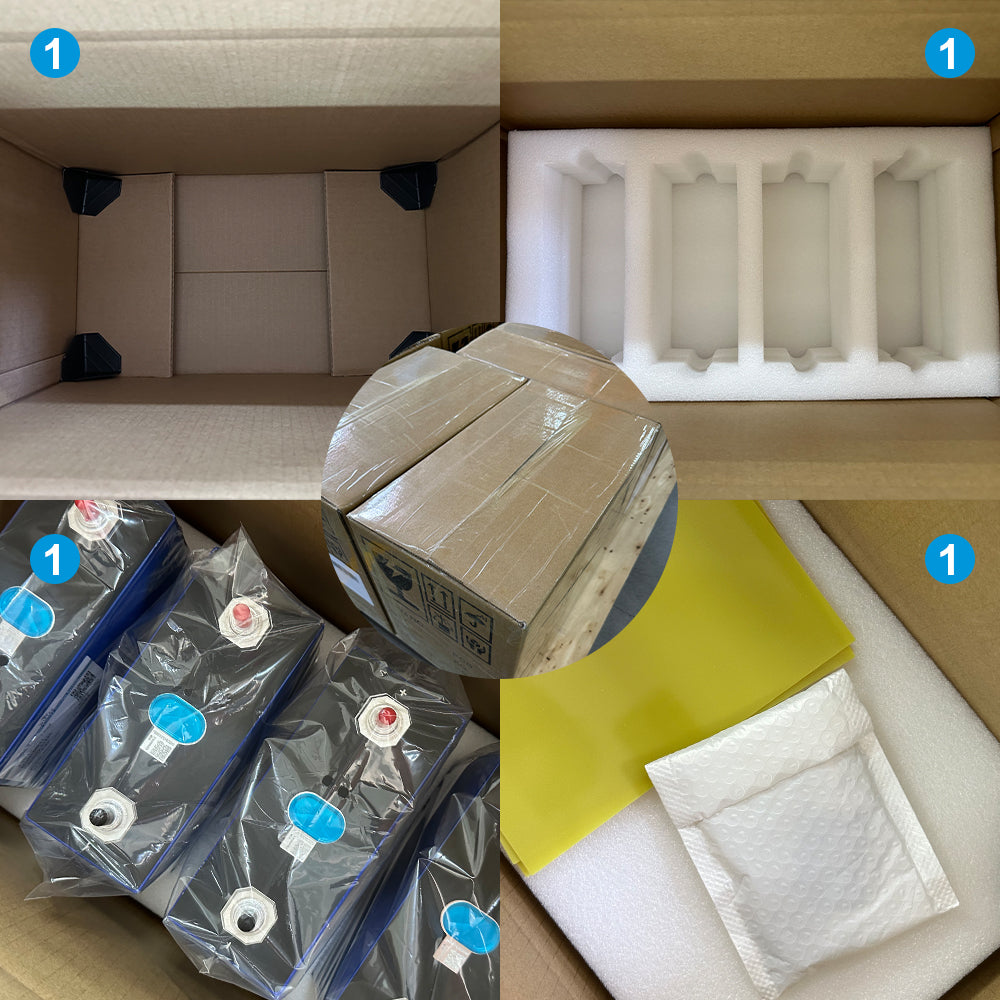

Professional & Secure Packaging

We strictly adhere to UN3480 Class 9 Dangerous Goods packing requirements.

  • Maximum Protection: Cells are encased in custom-contoured, high-density foam.

  • Global Compliance: Our heavy-duty cartons meet all Chinese export regulations and international maritime/air shipping standards.

  • Standard Unit: Each carton contains 4 cells and 4 sets of accessories.

Versatile Applications

Thanks to its exceptional charge/discharge tolerance, the LF334 is the ideal power solution for:

  • ESS: Emergency Energy Storage & Home Backup.

  • EVs: Electric Vehicles and high-drain mobility applications.

  • Off-Grid: Solar and wind energy storage systems.

Specification
Specification
x

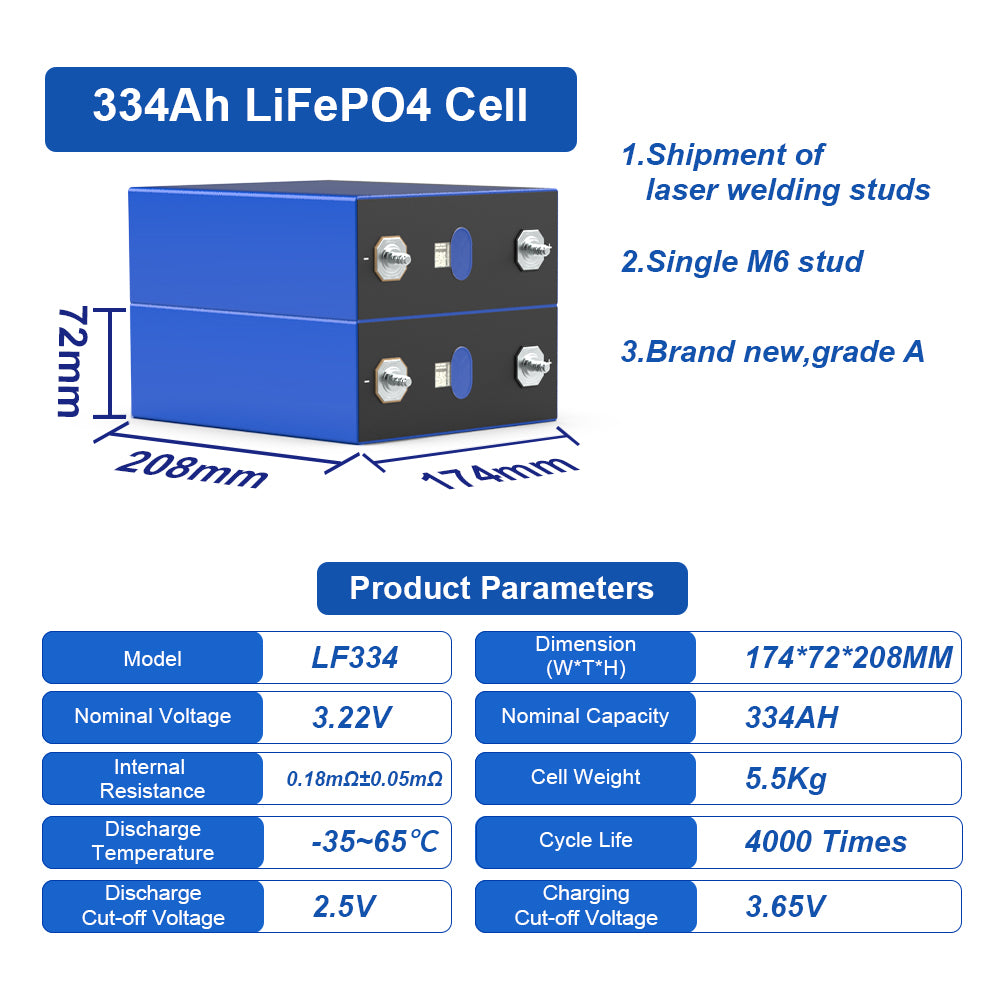

Technical Specifications

Model: EVE LF334
No. Item Specification
01 Nominal Capacity ≥334Ah
02 Nominal Energy ≥1075.48Wh
03 Nominal Voltage 3.22V
04 End-off-charge Voltage 3.65V
05 End-off-discharge Voltage 2.5V
06 Standard Charging Current 1C
07 Maximum Instantaneous Charging Current 2C
08 Standard Discharging Current 167 A
09 Maximum Instantaneous Discharging Current 3C
10 Initial IR 0.18mΩ ± 0.05 mΩ
11 Weight 5520 g ± 166 g
12 Dimension 174*72*207MM
13 Charge Temperature -10℃~65℃
14 Discharge Temperature -35℃~65℃
15 Storage Temperature 0℃ ~ 35℃
Download
Download
x
EVE LF334 334Ah 3.2V Specification
Download
FAQ
FAQ
x
Can LF334 be used in energy storage systems?
Yes, it can.
When DIYing a 15kWh battery, can LF334 and MB31 cells be mixed and assembled into a 15kWh battery?
No, it's not recommended to do this because the two cells have different capacities, and the capacity will affect the voltage (although the Lifepo4 battery voltage is very stable), creating a voltage difference between the cells.
What type of studs should be soldered to LF334?
M6
