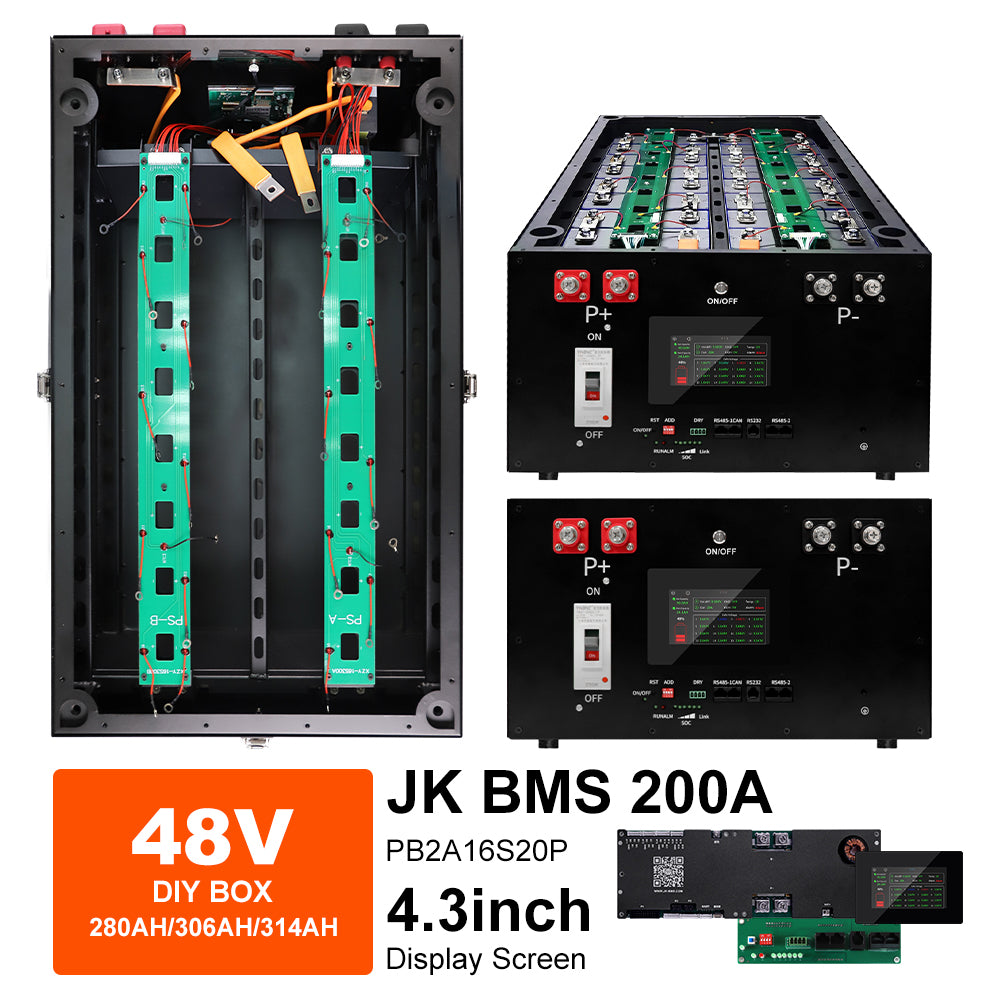

51.2V 15kWh LiFePO4 Battery Pre-assembled Diy Box with BMS|EP Energy
SKU:
EP-RESS4815-R
Availability:
In stock
Product type:
Diy Battery Box
- $520.00
$580.00- $520.00
- Unit price
- per
Subtotal:
$520.00
10 customers are viewing this product
Free Shipping
Express or ocean freight.
Express shipping time: 10-12 days.
Ocean freight to Europe: 35-45 days.
Ocean freight to the USA: 25-30 days.
Free Returns
We offer a 30-day return policy for items in new and unopened condition.
24/7 Online Service
Professional and prompt customer service.
Description
xProfessional Power, Simplified Assembly
Take the guesswork out of building your home energy storage. This premium, pre-assembled DIY box is engineered for high-performance prismatic cells, offering a seamless bridge between DIY flexibility and factory-grade safety.
๐ True Plug-and-Play Internal Hardware
Forget the headache of complex wiring. Weโve done the heavy lifting so you don't have to. The following components come pre-installed and pre-configured:
- JK PB2A16S20P BMS: Professional-grade management with a massive 200A continuous discharge.
- 2A Active Balancer: Keeps your cells perfectly synced for maximum longevity.
- 4.3-inch Touch Display: Real-time monitoring and control at your fingertips.
- Safety First: Integrated 250A Circuit Breaker and internal fire extinguisher for total peace of mind.
- All-Weather Ready: Built-in heating pad ensures optimal performance even in cold climates.
๐ Universal Cell Compatibility
Designed to house standard 280Ahโ314Ah prismatic cells. Whether you have single M6 studs or double-hole terminals, this box fits like a glove.
- Compatible Models: EVE (LF280K, LF304, MB30, MB31), Hithium (280Ah, 314Ah), REPT, Cornex, and CATL (280Ah, 302Ah).

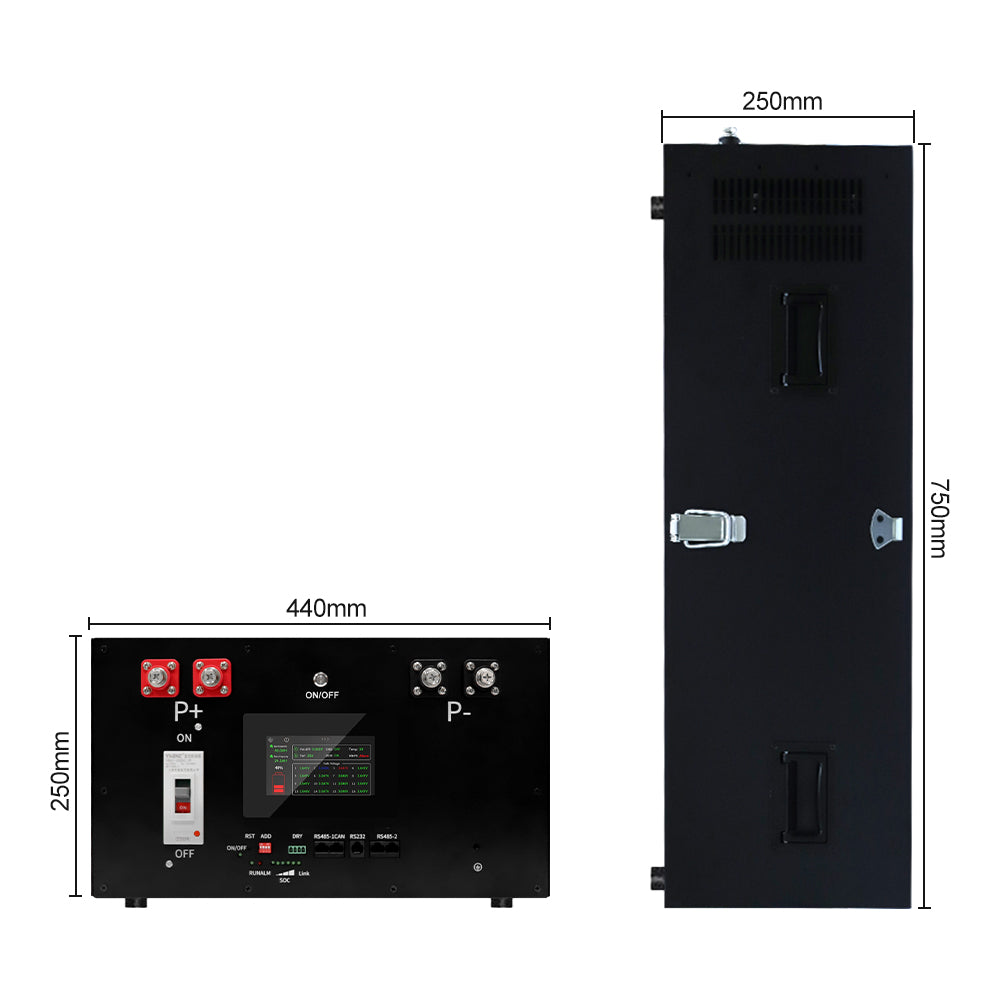

- Standardized Fit: Optimized for cell dimensions of 173 x 72 x 207mm (WTH).
๐๏ธ Heavy-Duty Stackable Design
Constructed from high-hardness stainless steel, these enclosures are built to grow with your energy needs.
- Scalable Power: Safely stack up to 5 units vertically.
- High Capacity: Create a massive 75kWh energy storage bank within a minimal footprint.
๐ ๏ธ 3-Step Assembly Guide
Setting up your power wall is now a weekend project, not a month-long ordeal:
- Drop-In: Place your battery cells in the designated order.
- Connect: Link the pre-routed signal cables and busbars.
- Secure: Tighten the screws and close the lid. Done.
๐ Application Areas
- Off-Grid Solar: Store excess sun for night-time independence.
- Home Backup: Seamless power during grid outages.
- Peak Shaving: Reduce electricity bills by using stored energy during peak hours.
- Industrial/RV: Robust enough for heavy-duty mobile or stationary use.
๐ฆ Whatโs in the Box?
- Heavy-duty Stainless Steel Enclosure
- Pre-wired JK BMS & Active Balancer
- 4.3" Touch Control Screen
- Internal Heating Pad & Fire Suppression Unit
- 250A Integrated Circuit Breaker
- Complete set of Screws, Terminals, and Flexible Busbars
Specification

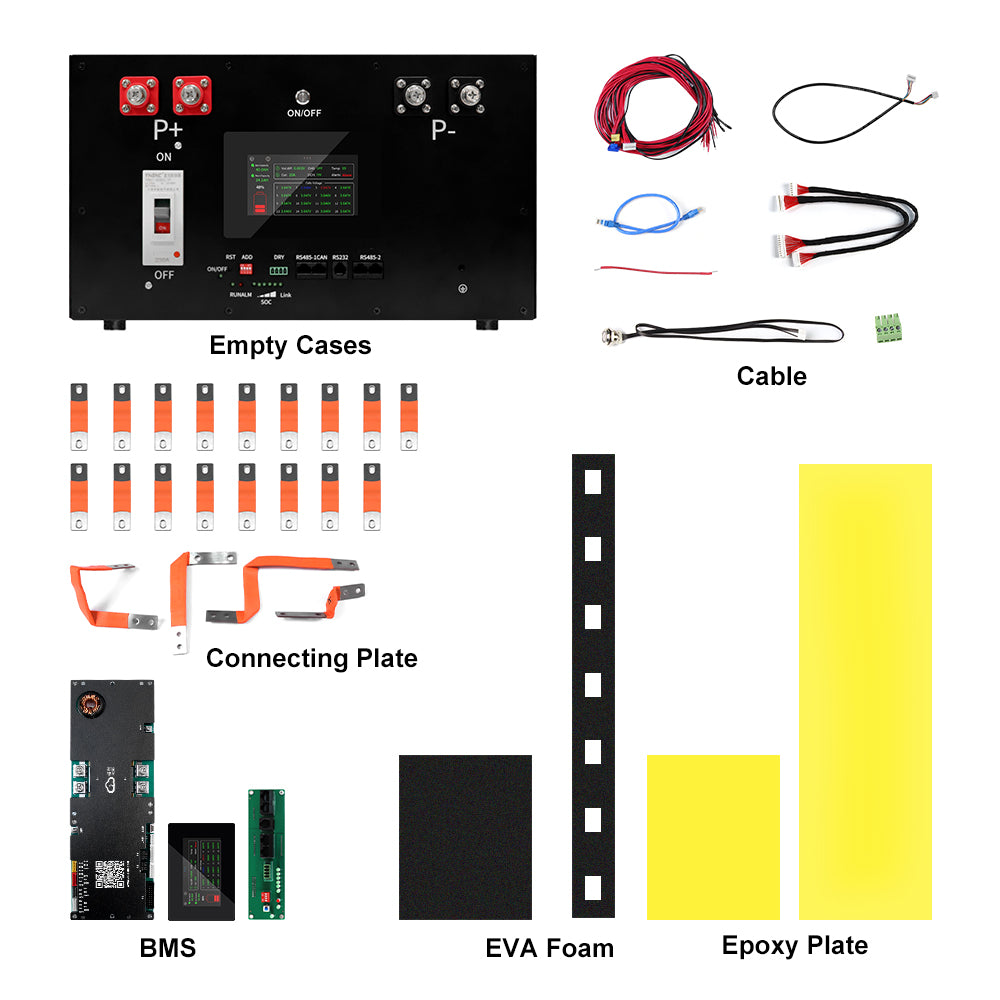

x15kWh DIY Box Packing List
| No. | Item | Quantities | Specification |
|---|---|---|---|
| 1 | Empty Box | 1 | 1.5mm thickness heavy-duty steel |
| 2 | Battery Terminal | 4 (2 Red / 2 Black) | High-current 200A withstand |
| 3 | Circuit Breaker | 1 | 250A protection |
| 4 | Signal PCB | 2 | M6 ring connector |
| 5 | Flexible Busbars (to Cell) | 15 | 90*20*2mm copper |
| 6 | Flexible Busbars (to BMS) | 4 | High conductivity flexible design |
| 7 | JK PB2S16S20P BMS | 1 | Includes 4.3 inch LCD display |
| 8 | Epoxy Plate - Type 1 | 18 | 160*190*0.5mm insulation |
| 9 | Epoxy Plate - Type 2 | 6 | 190*560*0.5mm insulation |
| 10 | Epoxy Plate - Type 3 | 1 | 380*560*0.5mm insulation |
| 11 | EVA Foam | 8 | Shock absorption material |
| 12 | Fire Extinguisher | 1 | Automatic safety feature |
| 13 | Heating Pad | 1 | Low-temperature protection |
| 14 | Power Cables | 2 (1 Red / 1 Black) | Premium 1/0 AWG wire |
FAQ
xWhich type of battery cells is this 15kWh DIY box compatible with?
This casing is designed for single M6 studded cells. While it is our standard
configuration, the box also accommodates double M6 hole cells.
Our standard kit includes single-hole flexible busbars. However, if you are using double-hole cells and
already have the corresponding busbars, they will fit perfectly within this enclosure. Our internal
layout is optimized for flexibility to ensure a seamless DIY assembly regardless of your cell's terminal
style.
Can I use this casing to build a battery pack and connect it in parallel with a
15kWh DIY box from another brand?
Yes, you can. Our DIY kits are designed to be compatible with standard parallel
configurations.
To ensure maximum efficiency and safety, we provide high-conductivity solid copper busbars rather than
silicone wiring. This choice minimizes resistance and heat generation, providing a more stable and
professional connection for high-capacity 15kWh systems. If you are looking to match or upgrade your
existing setup, our copper-based architecture is the ideal choice for long-term reliability.
